Honda-GB500tt-CF586-MK6-improved-CDI

Honda CBR500 CDI02 ECU Replacement

$315.89 inc GST

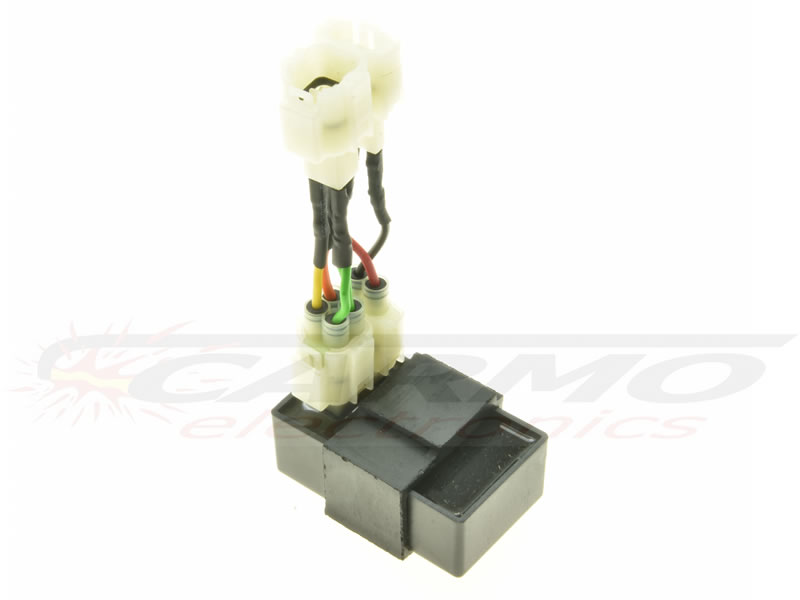

Improved Honda CBR500 CDI02 ECU Replacement
Plug & Play

– Spark Advance from 2000TPM
– Maximum advance at 3750TPM
– Smooth advance, not a ‘restless’ signal

Our ECU replacement is one of many models designed by motorcycle enthusiasts and manufactured with high quality digital components where possible. Sold all over the world this unit is giving many motorcycle riders the pleasure of improved vehicle performance. Your engine will run better and giving you more riding comfort.

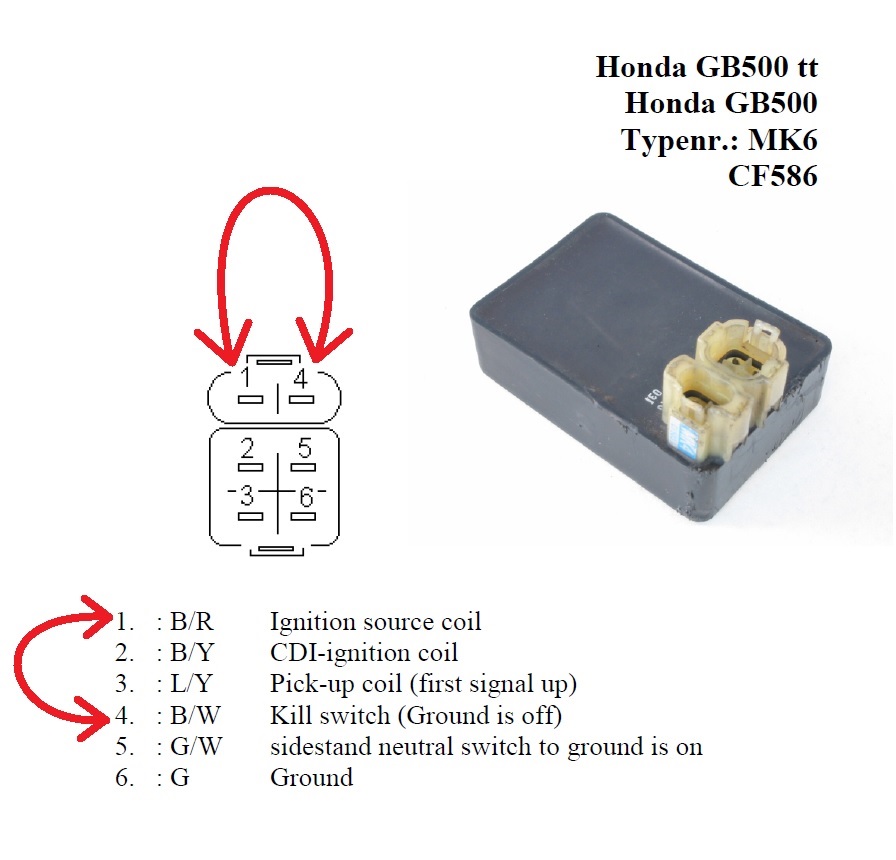

Please read the notes in the second picture before installation. These two wires might need to be swapped if the Carmo-unit doesn’t work.

I have read, understood and agree to the Terms & Conditions set out by Vectriq as shown on the T&C page.
Please note that you need to agree to our T&C's before you can proceed.
Category: SKU: Honda CBR500 CDI02 ECU Replacement.
Carmo Electronics

Description

This ECU is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda CBR500 CDI
Honda GB500 CDI
Honda GB500tt CDI

On the box:
30410-MK6-671 / 30410MK6671
CF586
MK6

Other names:
EC Ignitor, brain, ignition module
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition

Carmo-CDI02 Honda GB500tt XBR500 (MK6) CDI unit
Model: CARI-CDI02-XBR-GB500TT XBR GB500tt CDI unit
000.139.000 S120 45 149.5

Brand

Carmo Electronics
