Description

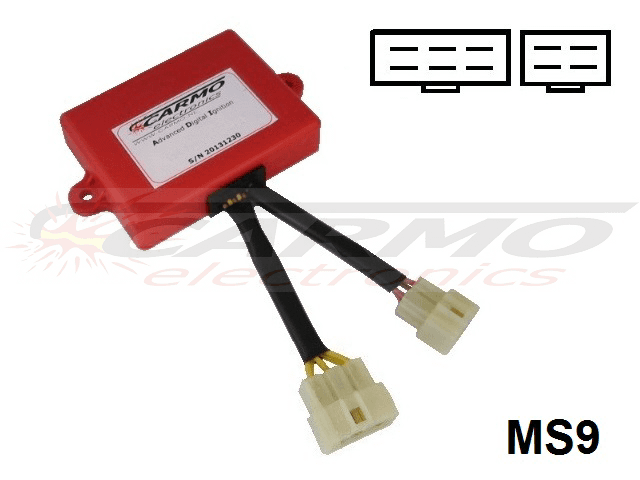

This is an improved Honda NTV 650 REVERE MS9 ECU Replacement.
What is better compared to the original unit:
– increased protection against over-voltage (such as a defective voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection .
– acceleration correction: when the RPM increases the ignition delay changes (in proportion) resulting in a smoother acceleration.
– digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
– optimized ignition curve/map to improve engine performance resulting in more power.
– spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
– start mode: during engine start there’s a start delay and the unit will give more current to the ignition coil for a faster start.
This ECU is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda NTV650 (RC33) CDI Unit
Honda NTV650 Bros CDI
Honda NTV 650 REVERE CDI
Honda NTV 650 Hawk CDI
Honda NTV600-K REVERE
1989 1990 1991 1992 1993 1994 1995 1996 1997 1998
OEM number: 30410-MS9-610 / 30410MS9610
On the box: MS9 / MS-9 / 512E1
Other names:
EC Ignitor, brain, ignition module
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition
Model: CARI-HO-NTV650-MS9 NTV650 CDI MS9
000.299.000 S120 45
