Description

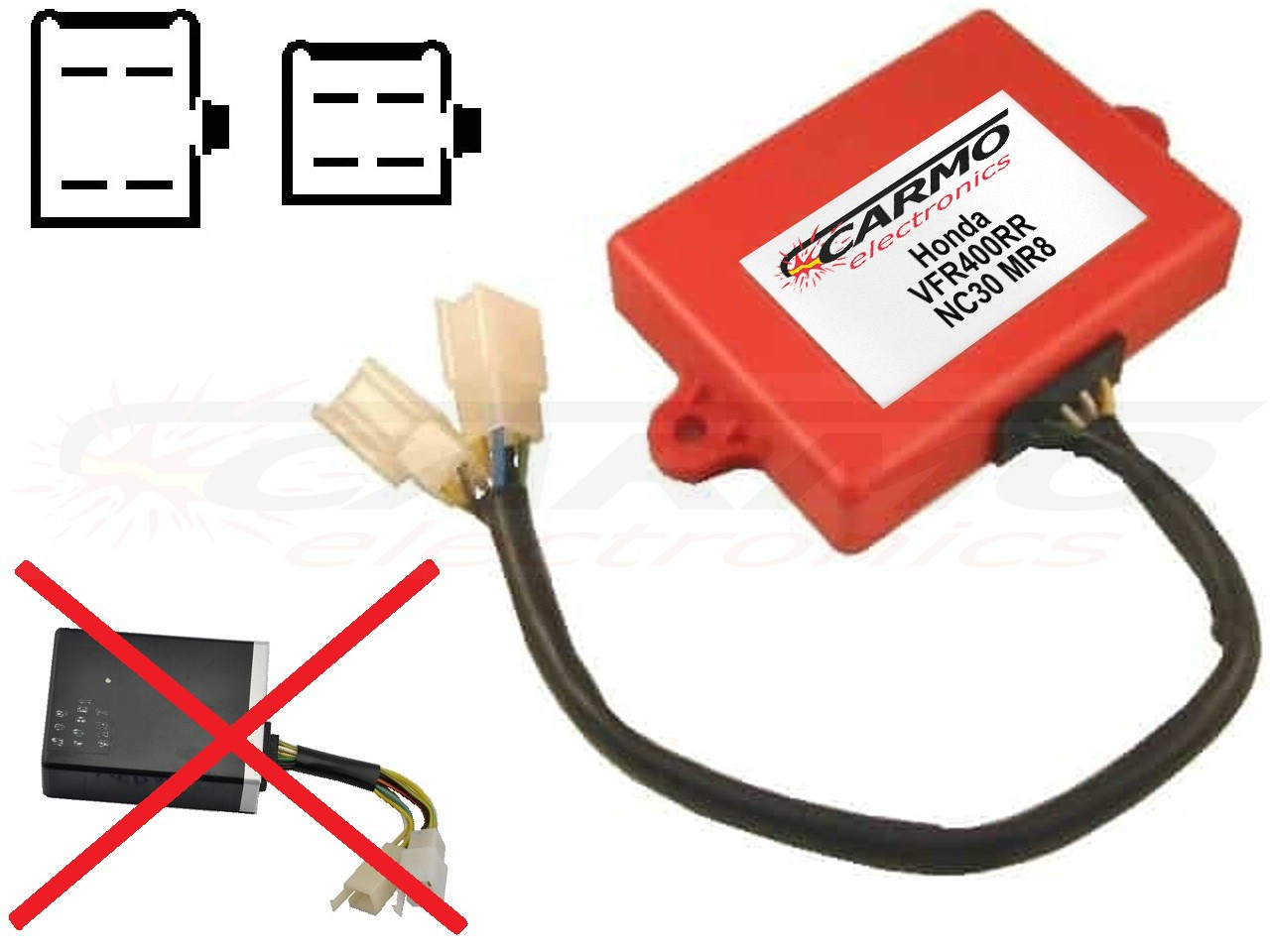

This is an improved Honda VFR400RR MR8 ECU Replacement.
What is better compared to the original unit:
– increased protection against over-voltage (such as a defective voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection .
– acceleration correction: when the RPM increases the ignition delay changes (in proportion) resulting in a smoother acceleration.
– digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
– optimized ignition curve/map to improve engine performance resulting in more power.
– spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
– start mode: during engine start there’s a start delay and the unit will give more current to the ignition coil for a faster start.
This ECU is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda VFR400 NC30 MR8 CDI
Honda VFR400R NC30 MR8 CDI (Honda VFR-400-R NC-30)
Honda VFR400RR NC30 MR8 CDI (Honda VFR-400-RR NC-30)
1989 1990 1991 1992 1993
Unrestricted!
Rev limiter: 14250rpm
Other names:
EC Ignitor, brain, ignition module
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition
Model: CARI-HO-VFR400-MR8 TCI Replacer (MR8) AMP
000.299.000 S120 45 349
