Kawasaki KL(R)600 CDI ECU Replacement

$506.47 inc GST

Improved Kawasaki KL(R)600 CDI ECU Replacement

Our ECU replacement is one of many models designed by motorcycle enthusiasts and manufactured with high quality digital components where possible. Sold all over the world this unit is giving many motorcycle riders the pleasure of improved vehicle performance. Your engine will run better and giving you more riding comfort.

Click HERE for Installation Manual

I have read, understood and agree to the Terms & Conditions set out by Vectriq as shown on the T&C page.
Please note that you need to agree to our T&C's before you can proceed.
Category: SKU: Kawasaki KL(R)600 Replacement.

Description

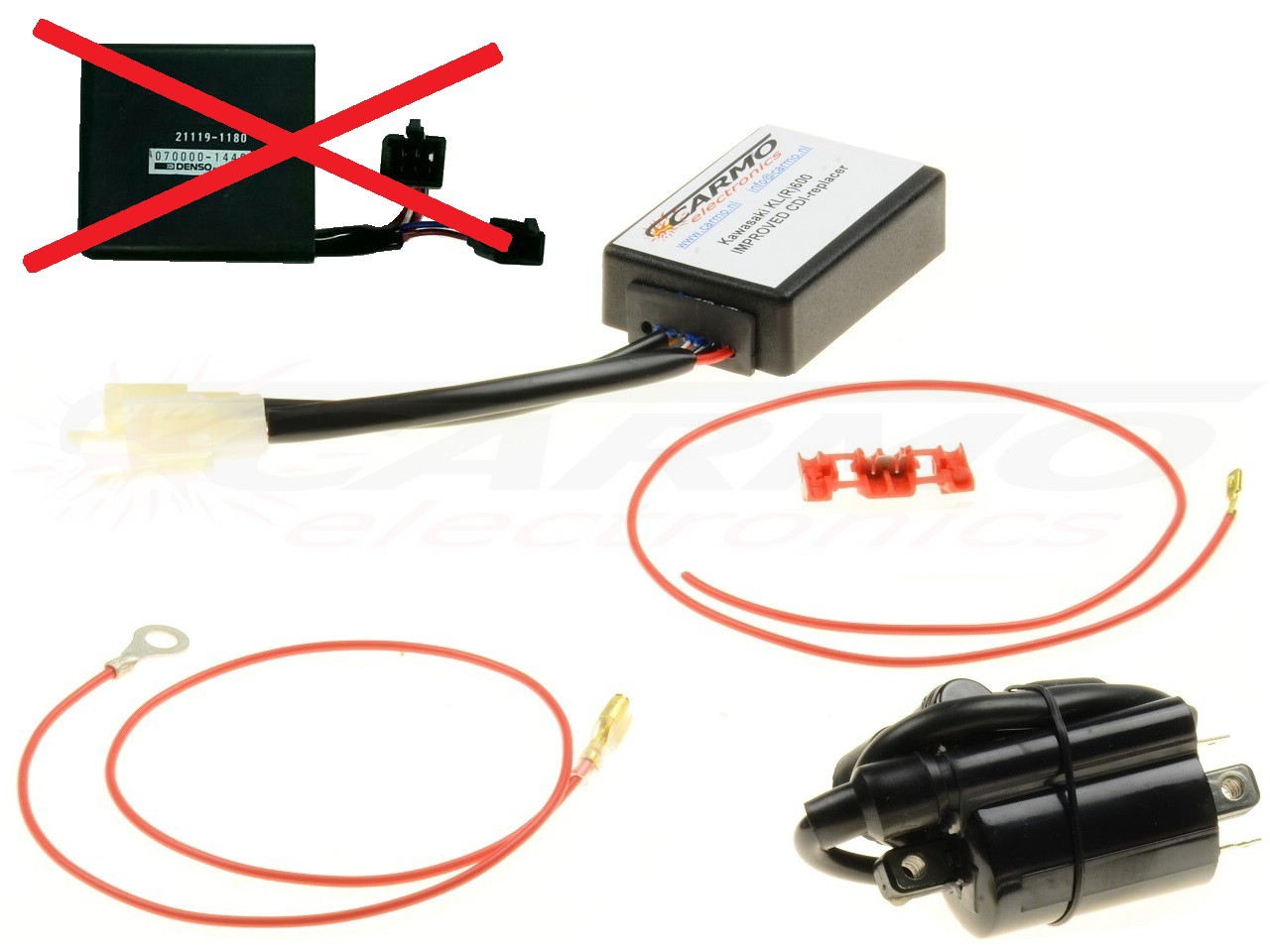

This is an improved Kawasaki KL(R)600 CDI ECU Replacement.
What is better compared to the original unit:
– increased protection against over-voltage (such as a defective voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection .
acceleration correction: when the RPM increases the ignition delay changes (in proportion) resulting in a smoother acceleration.
digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
optimized ignition curve/map to improve engine performance resulting in more power.
spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
start mode: during engine start there’s a start delay and the unit will give more current to the ignition coil for a faster start.

This ECU is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Kawasaki KL600 CDI
Kawasaki KLR600 CDI
1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994

On the box:
21119-1106 / 070000-1090
21119-1252 / 070000-1840
Denso

Other names:
EC Ignitor, brain, ignition module
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition

Model: CARI-KA-KL600-KLR600-21119-1106-1252 KL(R)600 Replacer
000.249.000 S120 45

Brand

Carmo Electronics
